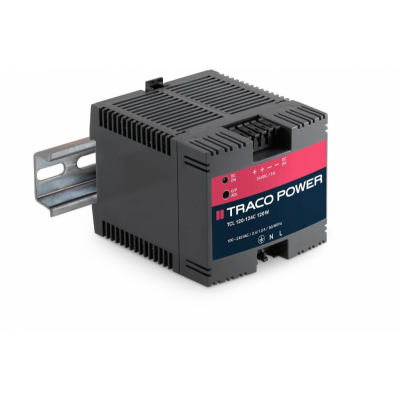

The TRACOPOWER TCL series is a family of DIN-rail power supplies with an excellent price/performance ratio. With tightly regulated output voltage and high immunity against electrical disturbances on the mains they provide a reliable power source for sensitive loads in industrial process controls, machine tools and other equipment exposed to a difficult industrial environment. Compact size, light weight, easy snap-on mounting on DIN-rails and the choice of two connection terminal versions are other features of these power supplies. The TCL series complies with all major safety standards for Europe (EN60950-1, EN50178), North America (UL/cUL 60950, UL 508 listed) or elsewhere in the world (CB-Report).

TRACOPOWER TCL系列是din導軌電源系列，具有優異的性價比。它們具有嚴格調節的輸出電壓和對市電干擾的高抗擾度，為工業過程控制、機床和其他暴露在艱難工業環境中的設備中的敏感負載提供可靠的電源。這些電源的其他特點是體積小巧，重量輕，易于安裝在din導軌上，并可選擇兩種連接端子版本。TCL系列符合歐洲(EN60950-1, EN50178)，北美(UL/cUL 60950, UL 508列出)或世界其他地方(CB-Report)的所有主要安全標準。


規范
輸出電壓
12伏直流
輸出調整1
12 - 15伏直流
輸出電流
8000毫安
額定功率
120 W
輸出數
單
輸入電壓
85-264伏/ 85-375伏
住房類型
塑料盒
越來越多的類型
導軌安裝
連接類型
長度
100毫米
寬度
85毫米
深度
75毫米
效率
88%
***高溫度
70°C
***低溫度
-10°C
